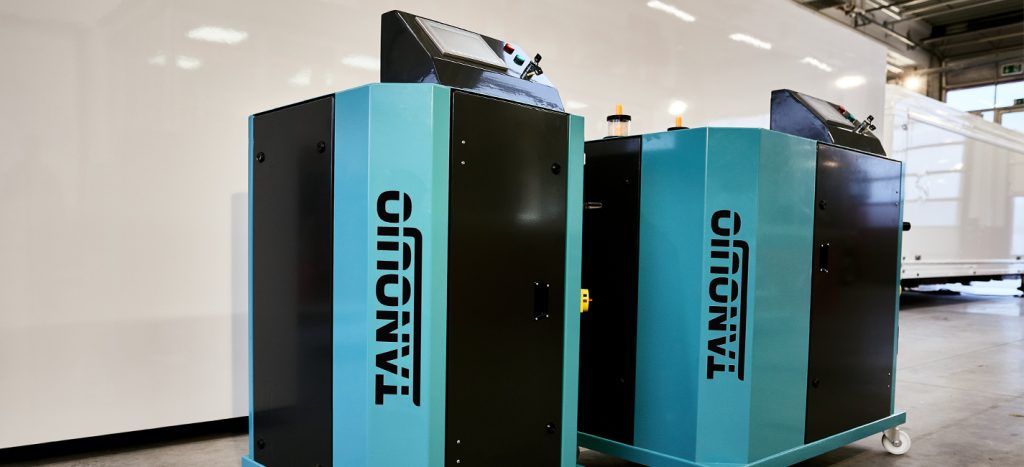

The FlexMix 600 is suitable for, for example, pouring, sealing, gluing, production of sandwich panels and other applications. The FlexMix 600 is a modular dosing system suitable for solvent-free adhesives, the pumps that are used are gear pumps. The gear pumps can be supplied in various designs. The FlexMix 600 is used to process 1K, 2K and 3K adhesives with a low to high viscosity such as epoxies, polyurethanes, polyols and silicones. The adhesives are transported to the gear pumps via the built-in tank (s). The tanks can be carried out in a manual filling version or a combination of automatic filling using 200-liter drums. If the adhesives are delivered in IBC containers, they can be directly connected to the tanks. The tanks are then automatically filled without the intervention of filling pumps. Each tank is equipped with level sensors. The low-level sensor prevents the gear pump from running dry, a middle level indicates that it needs to be topped up. An air dryer is installed on each tank as standard. Optionally, a nitrogen generator can be built-in, for example, to protect polyurethanes against the influence of moisture, a nitrogen blanket is placed above the adhesive.
The adhesives are fed to the gear pumps via the built-in tanks. From there, the two liquids are pumped in exactly the right mixing ratio to the mixing valve. Mixing takes place in a disposable static mixer. To always guarantee the correct yield of the adhesive, even with small quantities and the use of long hoses between pump and dosing head, the pressure control system specially developed by Tanoujo is used. The gear pumps are driven by AC motors, controlled by frequency converters. The speed of the motors is monitored with feedback. The correct mixing ratio is continuously monitored and adjusted if necessary. Each pump is provided with a test program to test the output of the gear pumps regularly. Each FlexMix is equipped with control with touchscreen FlexMix: multi-component dosing and mixing systems with gear pump technology.
The system is compact, versatile and reliable, for accurate dosing of liquids with low to high viscosity.
The FlexMix 600 is suitable for, for example, pouring, sealing, gluing, production of sandwich panels and other applications. The FlexMix 600 is a modular dosing system suitable for solvent-free adhesives, the pumps that are used are gear pumps. The gear pumps can be supplied in various designs. The FlexMix 600 is used to process 1K, 2K and 3K adhesives with a low to high viscosity such as epoxies, polyurethanes, polyols and silicones. The adhesives are transported to the gear pumps via the built-in tank(s). The tanks can be carried out in a manual filling version or a combination of automatic filling using 200-liter drums. If the adhesives are delivered in IBC containers, they can be directly connected to the tanks. The tanks are then automatically filled without the intervention of filling pumps. Each tank is equipped with level sensors. The low-level sensor prevents the gear pump from running dry, a middle level indicates that it needs to be topped up. An air dryer is installed on each tank as standard. Optionally, a nitrogen generator can be built-in, for example, to protect polyurethanes against the influence of moisture, a nitrogen blanket is placed above the adhesive.
The FlexMix offers intelligent adhesive ratios for reliable pour, glue and seal solutions. The adhesives are fed to the gear pumps via the built-in tanks. From there, the two liquids are pumped in exactly the right mixing ratio to the mixing valve. Mixing takes place in a disposable static mixer. To always guarantee the correct yield of the adhesive, even with small quantities and the use of long hoses between pump and dosing head, the pressure control system specially developed by Tanoujo is used. The gear pumps are driven by AC motors, controlled by frequency converters. The speed of the motors is monitored with feedback. The correct mixing ratio is continuously monitored and adjusted if necessary. Each pump is provided with a test program to test the output of the gear pumps regularly. Each FlexMix is equipped with touchscreen control.
